Roofing and Facade

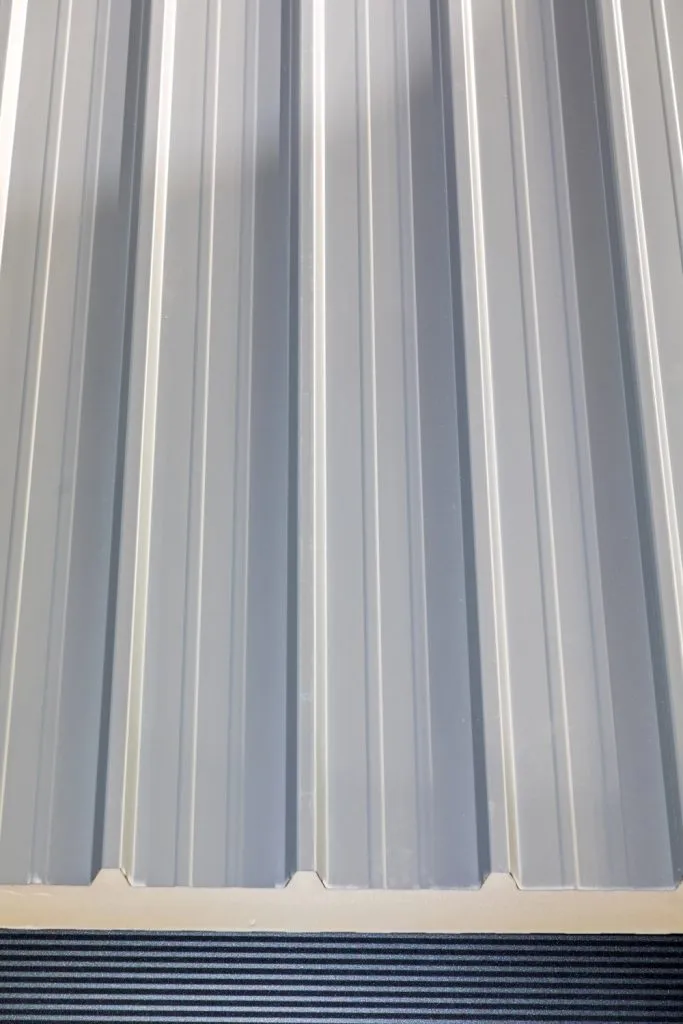

5 Ribs Membrane Roof Panel
Zetmar provides international sourcing and supply coordination for 5 Ribs Membrane Roof Panel, supporting projects that require documented quality, dependable delivery and project-specific material selection.
Relevant selection details include Insulation Thickness (30-40-50-60-70-75-80-100-120-150-180-200 mm) and Insulation Density (PUR: 38-42 kg/m3 & PIR: 42-45 kg/m3). Final grades, dimensions and supply conditions can be matched to the intended application and project requirements.
Request a QuoteOverview
Sandwich roof panels offer both aesthetic and smart solutions for your buildings thanks to its energy efficiency, fire resistance, elegant look and easy installation.
Polyisocyanurate (PIR) insulated panels have higher fire resistance performance than polyurethane (PUR) insulated panels.
Specifications
| 5 Ribs Membrane Roof Panel | |
|---|---|
| Product Group | Roof Panels |
| Product Details | PVC Membrane + Metal Sheet + PUR or PIR Insulant + Metal Sheet |
| Insulation Thickness | 30-40-50-60-70-75-80-100-120-150-180-200 mm |
| Insulation Density | PUR: 38-42 kg/m3 & PIR: 42-45 kg/m3 |
| Panel Width | 100-150-200-250-300 cm |
| Panel Length | 2 - 15 meters |
| Outer Sheet Thickness | 0,3 - 0,8 mm |
| Inner Sheet Thickness | 0,3 - 0,8 mm |
| PVC Thickness | 1,2 mm |
| Colour Options | RAL (9002, 9006, 7042, 7016, 5010, 5015, 6018, 6029, 3009, 3011, 2004, 1028) |
| Thermal Conductivity | Depending on panel thickness, λ between 0,49 - 0,11 w/m2k (Acc. EN 14509) |
| Fire Performance | B-S2;D0, B-S3;D0, C-S3;D0 (Acc. EN 13501-1) |
