Steel

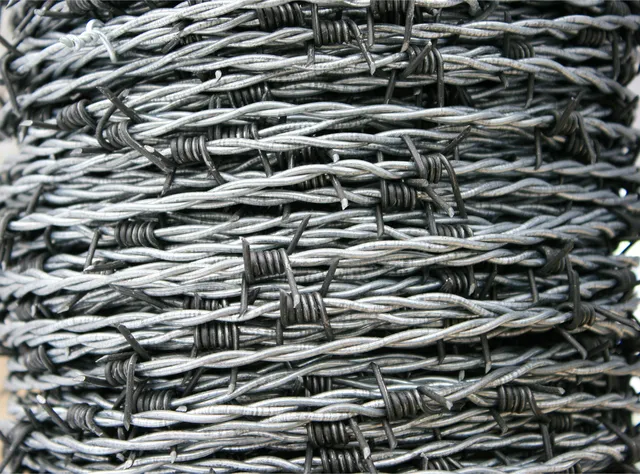

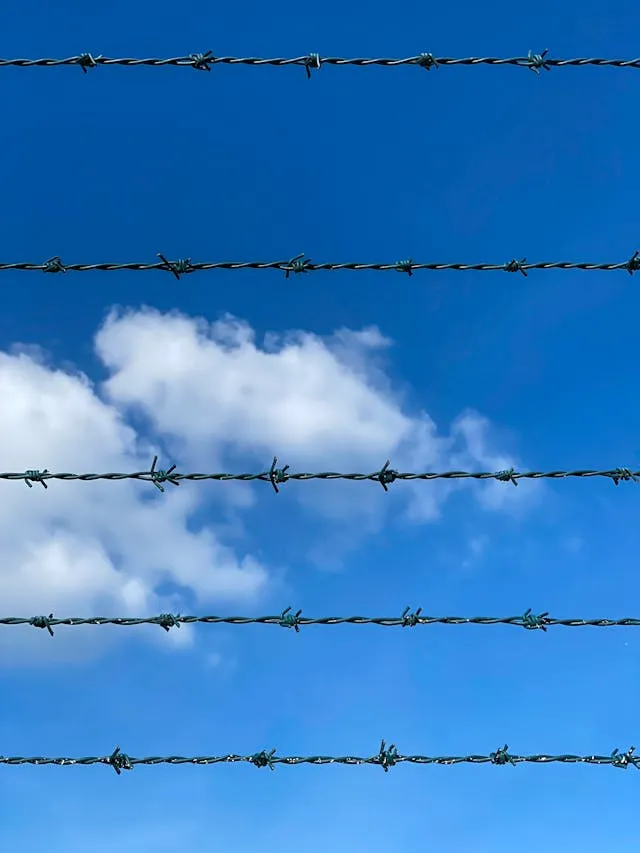

Barbed Wire
Zetmar provides international sourcing and supply coordination for Barbed Wire, supporting projects that require documented quality, dependable delivery and project-specific material selection.
Relevant selection details include Tensile Strength of Body Wire (min. 350 N / mm2 - max. 500 N / mm2) and Tensile Strength of Barbed Wire (min. 350 N / mm2 - max. 500 N / mm2). Final grades, dimensions and supply conditions can be matched to the intended application and project requirements.
Request a QuoteOverview
It is produced from galvanized wires and is one of the frequently used products in terms of providing high security measures and price performance.
Areas Of Usage
Indutrial Facilities
Agricultural Ares
Borders
Military Zones
Garden Frames
Specifications
| Barbed Wire | ||||||
|---|---|---|---|---|---|---|
| Coating | Hot-Dip Galvanizing | |||||
| Coating Ratio | min. 40 gr / m2 - max. 300 gr / m2 | |||||
| Tensile Strength of Body Wire | min. 350 N / mm2 - max. 500 N / mm2 | |||||
| Tensile Strength of Barbed Wire | min. 350 N / mm2 - max. 500 N / mm2 | |||||
| Raw Material Standards | TS 2348 EN 10016 (SAE 1006, SAE 1008) | |||||
| Technical Details | Conventional Barbed Wire | |||||
| Number of Line Wires | 2 | |||||
| Diameter of Body Wire | 1,35 - 2,50 mm (±0,05) | |||||
| Diameter of Barbs | 1,35 - 2,50 mm (±0,05) | |||||
| Distance Between Barbs | 75 -100 - 125 - 150 mm (± 7 mm) | |||||
| Roll Length | 100 - 125 - 250 - 500 meters | |||||
| Roll Weight | 10 - 40 kg | |||||
