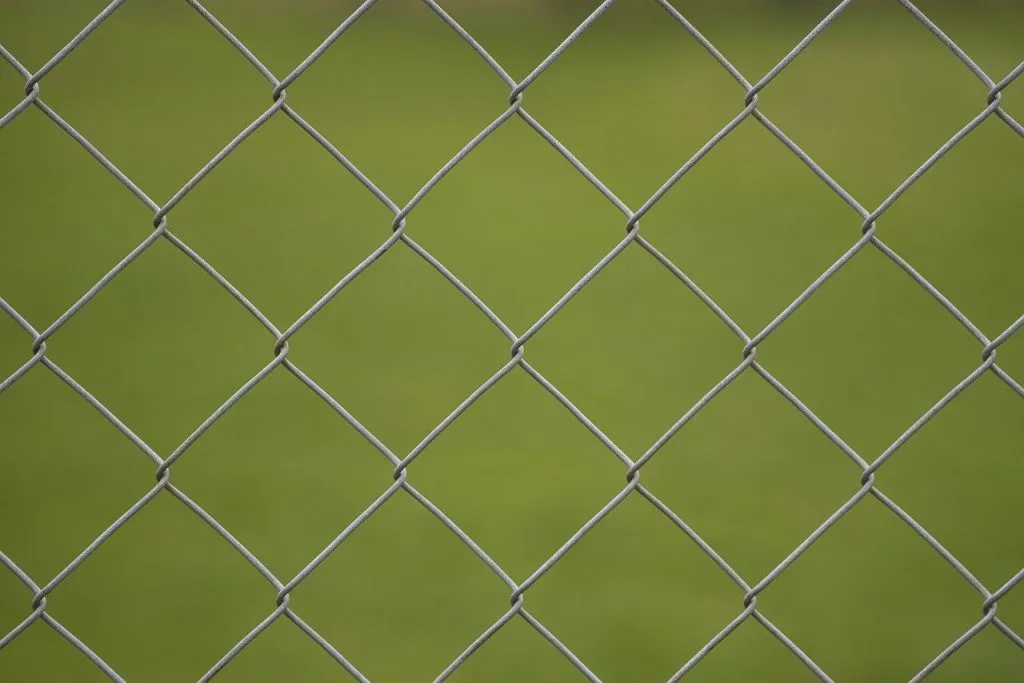

Galvanized Chain Link Wire Fence

Zetmar provides international sourcing and supply coordination for Galvanized Chain Link Wire Fence, supporting projects that require documented quality, dependable delivery and project-specific material selection.

Relevant selection details include Production Standards (TS EN 10223-6 , ASTM A 392 (Class I)) and Wire Quality (SAE 1006 & SAE 1008). Final grades, dimensions and supply conditions can be matched to the intended application and project requirements.

Choose Model Request a Quote

Overview

Galvanized chain link fencing mesh is manufactured from high quality galvanized steel and used for commercial and residential applications including boundary/perimeter demarcation and security fencing.

Areas Of Usage

Special security zones

Airports

Private terrains

Agricultural zones

Sport complex

Various industrial treatments

Steel construction applications

Schools

Military zones

Forests

Parks

PVC Coated Chain Link Wire Fences

It is manufactured by coating PVC on hot-dip galvanization and has high resistance to sunlight. Since it is covered with PVC, it is long-lasting product and there is no fading in colors.

Specifications

Dimensions

Wire Thickness	Mesh Size						Fence Height	Coating Ratio	Tensile Strength
2,00 mm	15x15	20x20					Min 500 mm - Max 6000 mm	Min 80gr/m2 - Max 370 gr/m2	Min 350 N /mm2 - Max 500 N /mm2
2,00 mm	25x25	30x30	40x40	50x50	60x60	70x70
2,30 mm	25x25	30x30	40x40	50x50	60x60	70x70
2,50 mm	30x30	40x40	50x50	60x60	70x70
2,80 mm	30x30	40x40	50x50	60x60	70x70
3,00 mm	30x30	40x40	50x50	60x60	70x70
3,50 mm	40x40	50x50	60x60	70x70
3,80 mm	40x40	50x50	60x60	70x70
4,00 mm	40x40	50x50	60x60	70x70
