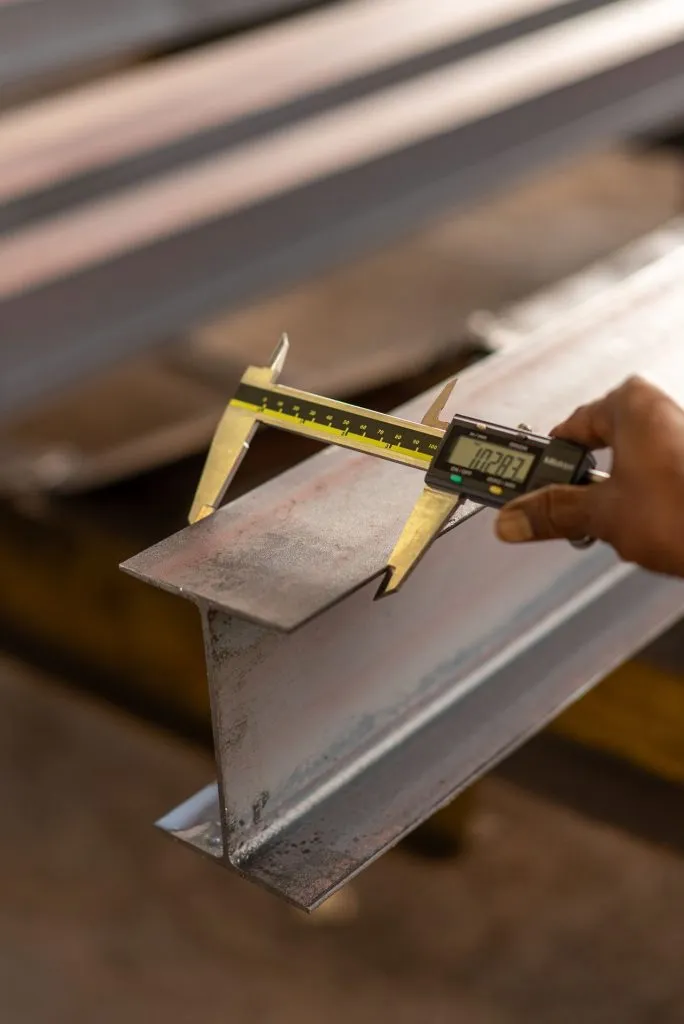

IPN Beams
Zetmar provides international sourcing and supply coordination for IPN Beams, supporting projects that require documented quality, dependable delivery and project-specific material selection.
Relevant selection details include 80 IPN (80x42x3,9 · 5.94) and 100 IPN (100x50x4,5 · 8.34). Final grades, dimensions and supply conditions can be matched to the intended application and project requirements.
Request a QuoteOverview
Hot rolled steel I beams are heavy-duty structural metal components shaped at high temperatures above their recrystallization point. They feature an I shaped cross-section that resists bending, and they are widely used in building frames, bridges, and industrial supports.
Areas Of Usage
Multi-story buildings: Acting as primary columns and floor joists in high-rises and commercial facilities.
Industrial warehouses: Creating wide, clear-span open spaces without internal support posts.
Roof supports and purlins: Distributing weight across wide structural frameworks.
Bridges and overpasses: Supporting massive dynamic traffic loads over extended spans.
Trestles and support piers: Providing rigidity and deep load transfer in civil engineering projects.
Crane runways: Handling the moving, repetitive stress of heavy lifting machinery.
Manufacturing plants: Forming structural skids and support gantries for heavy-duty industrial gear.
Specifications
| IPN Size-Weight Table | ||
|---|---|---|
| Material | Size (mm) | Unit Weight (kg/m) |
| 80 IPN | 80x42x3,9 | 5.94 |
| 100 IPN | 100x50x4,5 | 8.34 |
| 120 IPN | 120x58x5,1 | 11.1 |
| 140 IPN | 140x66x5,7 | 14 |
| 160 IPN | 160x74x6,3 | 17.9 |
| 180 IPN | 180x82x6,9 | 21.9 |
| 200 IPN | 200x90x7,5 | 26.2 |
| 220 IPN | 220x98x8,1 | 31.1 |
| 240 IPN | 240x106x8,7 | 36.2 |
| 260 IPN | 260x113x9,4 | 41.9 |
| 280 IPN | 280x119x10,1 | 47.9 |
| 300 IPN | 300x125x10,8 | 52.2 |
