PVC Coated Chain Link Wire Fence
Zetmar provides international sourcing and supply coordination for PVC Coated Chain Link Wire Fence, supporting projects that require documented quality, dependable delivery and project-specific material selection.
Relevant selection details include Production Standards (TS EN 10223-6 , ASTM A 392 (Class I)) and PVC Coating Ratio (1 mm ±0,5 mm). Final grades, dimensions and supply conditions can be matched to the intended application and project requirements.
Request a QuoteOverview
Galvanized chain link fencing mesh is manufactured from high quality galvanized steel and used for commercial and residential applications including boundary/perimeter demarcation and security fencing.
Areas Of Usage
Special security zones
Airports
Private terrains
Agricultural zones
Sport complex
Various industrial treatments
Steel construction applications
Schools
Military zones
Forests
Parks

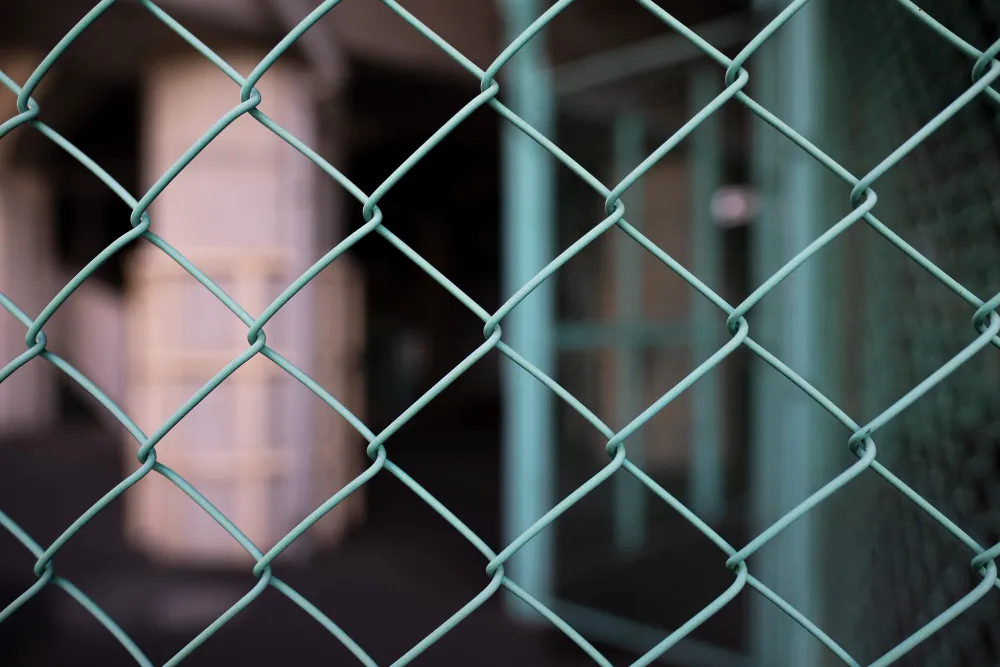

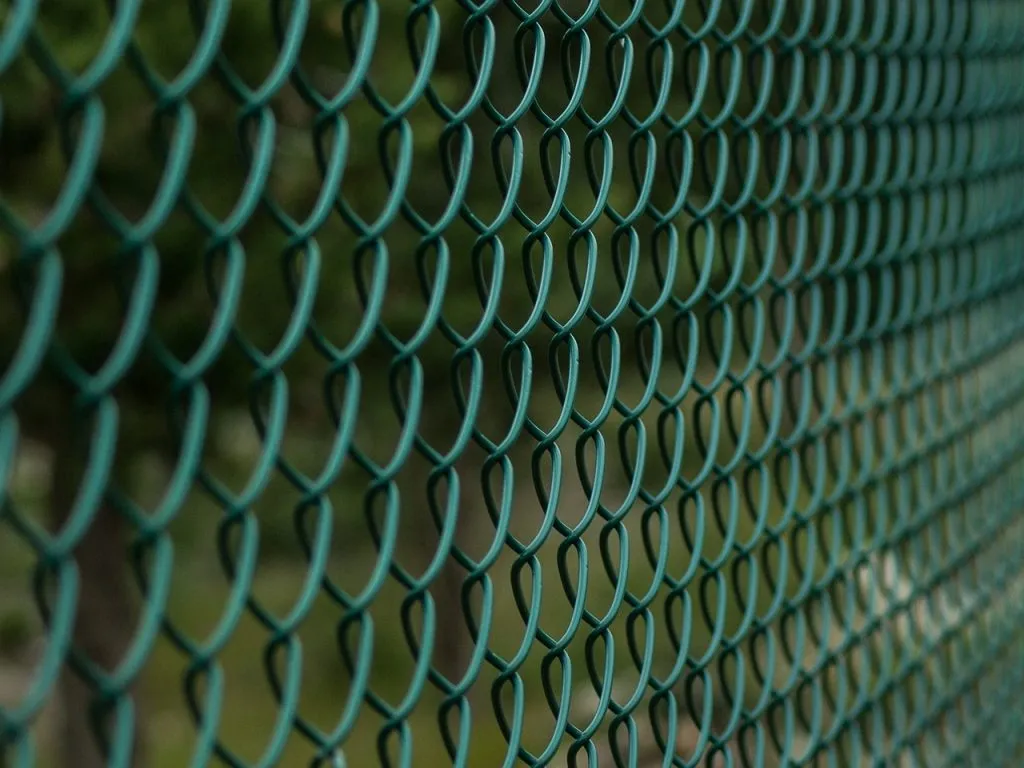

PVC Coated Chain Link Wire Fences
It is manufactured by coating PVC on hot-dip galvanization and has high resistance to sunlight. Since it is covered with PVC, it is long-lasting product and there is no fading in colors.
Specifications
Dimensions
| Wire Thickness | Mesh Size | Fence Height | Coating Ratio | Tensile Strength | ||||
|---|---|---|---|---|---|---|---|---|
| 3,00 mm | 30x30 | 40x40 | 50x50 | 60x60 | 70x70 | Min 500 mm - Max 6000 mm | Min 80gr/m2 - Max 370 gr/m2 | Min 350 N /mm2 - Max 500 N /mm2 |
| 3,50 mm | 40x40 | 50x50 | 60x60 | 70x70 | ||||
| 4,00 mm | 40x40 | 50x50 | 60x60 | 70x70 | ||||
Specifications
| Wire Quality | SAE 1006 & SAE 1008 | |||||
|---|---|---|---|---|---|---|
| Production Standards | TS EN 10223-6 , ASTM A 392 (Class I) | |||||
| Coating | Hot Dip Galvanizing + 1st Quality of UV Resistant PVC | |||||
| PVC Coating Ratio | 1 mm ±0,5 mm | |||||
