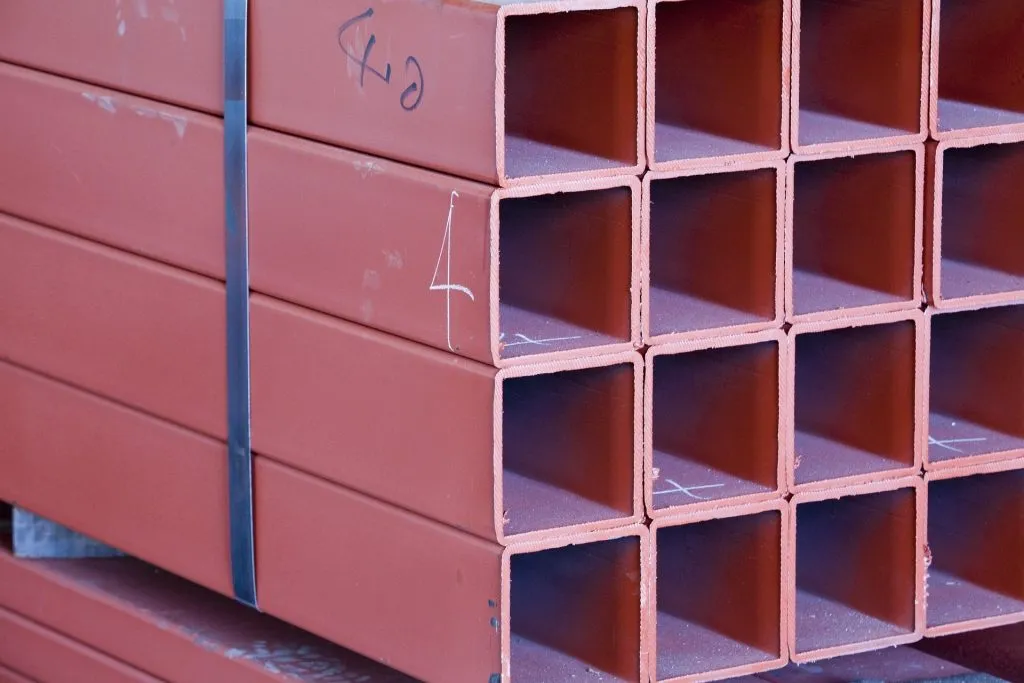

Square Hollow Sections

Zetmar provides international sourcing and supply coordination for Square Hollow Sections, supporting projects that require documented quality, dependable delivery and project-specific material selection.

Relevant selection details include Outside Diameter (10x10 to 250x250 mm) and Wall Thickness (0,90 to 10,0 mm). Final grades, dimensions and supply conditions can be matched to the intended application and project requirements.

Choose Model Request a Quote

Overview

Square Hollow Sections, also referred to as box sections are widely used in engineering projects and construction.

Specifications

Square Hollow Section (Hot Rolled)

Property	Value
Outside Diameter	10x10 to 250x250 mm
Wall Thickness	0,90 to 10,0 mm
Length	4,0 - 14,0 m

Square Hollow Section (Cold Rolled)

Property	Value
Outside Diameter	10x10 to 50x50 mm
Wall Thickness	0,50 to 3,0 mm
Length	4,0 - 8,0 m

Hot Rolled

Hot Rolled Square Hollow Sections Size-Weight Table
Outside Diameter (mm)	Wall Thickness (mm)
	0.9	1	1.2	1.5	2	2.5	3	3.5	4	4.5	5	6	8	10
	Unit Weight (kg/m)
10x10	0.24	0.26	0.3	0.35	-	-	-	-	-	-	-	-	-	-
15x15	0.38	0.42	0.49	0.59	0.74	-	-	-	-	-	-	-	-	-
20x20	0.52	0.58	0.68	0.83	1.05	1.25	1.42	-	-	-	-	-	-	-
25x25	0.66	0.73	0.87	1.06	1.36	1.64	1.89	-	-	-	-	-	-	-
30x30	0.81	0.89	1.06	1.3	1.68	2.03	2.36	-	-	-	-	-	-	-
35x35	0.95	1.05	1.24	1.53	1.99	2.42	2.83	-	-	-	-	-	-	-
38x38	-	1.14	1.36	1.67	2.18	2.66	3.12	-	-	-	-	-	-	-
40x40	-	1.2	1.43	1.77	2.31	2.82	3.3	3.76	4.2	-	-	-	-	-
45x45	-	-	1.62	2	2.62	3.21	3.77	-	-	-	-	-	-	-
50x50	-	1.52	1.81	2.24	2.93	3.6	4.25	4.86	5.45	6.02	6.56	-	-	-
60x60	-	1.83	2.19	2.71	3.56	4.39	5.19	5.96	6.71	7.43	8.13	9.45	-	-
70x70	-	-	-	3.18	4.19	5.17	6.13	7.06	7.97	8.85	9.7	11.33	-	-
75x75	-	-	-	3.42	4.5	5.56	6.6	7.61	8.59	9.55	10.48	12.27	-	-
80x80	-	-	-	-	4.82	5.96	7.07	8.16	9.22	10.26	11.27	13.21	16.36	-
90x90	-	-	-	-	5.45	6.74	8.01	9.26	10.48	11.67	12.84	15.1	18.87	22.42
100x100	-	-	-	4.59	6.07	7.53	8.96	10.36	11.73	13.08	14.41	16.98	21.39	25.56
120x120	-	-	-	-	-	9.1	10.84	12.56	14.25	15.91	17.55	20.75	26.41	31.84
125x125	-	-	-	-	-	9.49	11.31	13.11	14.87	16.62	18.33	21.69	-	-
140x140	-	-	-	-	-	-	12.72	14.75	16.76	18.74	20.69	24.52	31.43	38.12
150x150	-	-	-	-	-	-	13.67	15.85	18.01	20.15	22.26	26.4	33.95	41.26
160x160	-	-	-	-	-	-	14.61	16.95	19.27	21.56	23.83	28.29	36.46	44.4
180x180	-	-	-	-	-	-	16.49	19.15	21.78	24.39	26.97	32.05	41.48	50.68
200x200	-	-	-	-	-	-	-	-	24.29	27.21	30.11	35.82	46.51	56.96
250x250	-	-	-	-	-	-	-	-	-	-	37.96	45.24	59.07	72.66

Cold Rolled

Cold Rolled Square Hollow Sections Size-Weight Table
Outside Diameter (mm)	Wall Thickness (mm)
	0.5	0.6	0.7	0.8	0.9	1	1.2	1.4	1.5	2	2.5	3
	Unit Weight (kg/m)
10x10	0.15	0.18	0.2	0.23	0.26	0.28	0.33	0.37	0.4	-	-	-
15x15	0.23	0.27	0.31	0.36	0.4	0.44	0.52	0.59	0.63	0.81	-	-
20x20	0.31	0.36	0.42	0.48	0.54	0.59	0.71	0.81	0.87	1.12	1.36	1.45
25x25	-	0.46	0.53	0.61	0.68	0.75	0.89	1.03	1.1	1.44	1.76	1.92
30x30	-	0.55	0.64	0.73	0.82	0.91	1.08	1.25	1.34	1.75	2.15	2.39
35x35	-	-	-	0.86	0.96	1.07	1.27	1.47	1.57	2.07	2.54	2.86
40x40	-	-	-	0.98	1.1	1.22	1.46	1.69	1.81	2.38	2.93	3.33
50x50	-	-	-	-	-	1.54	1.84	2.13	2.28	3.01	3.72	4.28

Available Qualities

Available Qualities
Steel Grade		Production Standard
S235JRH, S275J0H, S275J2H, S355J0H, S355J2H, S355K2H, S275NH, S275NLH, S275MH, S275MLH, S355NH, S355NLH, S355MH, S355MLH, S420MH, S420MLH		EN 10219 (TS EN 10219) (CE)
		EN 10219 (TS EN 10219) (CE)
S235JRH, S275J0H, S275J2H, S355J0H, S355J2H, S355K2H, S275NH, S275NLH, S275MH, S275MLH, S355NH, S355NLH, S355MH, S355MLH, S420MH, S420MLH		SI 1458-1
		SI 1458-1
Grade A, Grade B, Grade C, Grade D		ASTM A500
E155, E190, E195, E220, E235, E260, E275, E320, E355, E370, E420		EN 10305-5 (TS EN 10305-5)
C250, C350, C450, C250L0, C350L0		AS/NZS 1163
On Demand
Heat Treatment	to weld seam and full body for normalization and stress relieving
Surface	Galvanizing, Primer Paint Coating, Protective Oil
