Steel
Standard Welded Panel
Zetmar provides international sourcing and supply coordination for Standard Welded Panel, supporting projects that require documented quality, dependable delivery and project-specific material selection.
Relevant selection details include Tensile Strength (450-650 N/mm2) and Mesh Size (Wire Thicknes · Panel Height · Panel Width). Final grades, dimensions and supply conditions can be matched to the intended application and project requirements.
Request a QuoteOverview

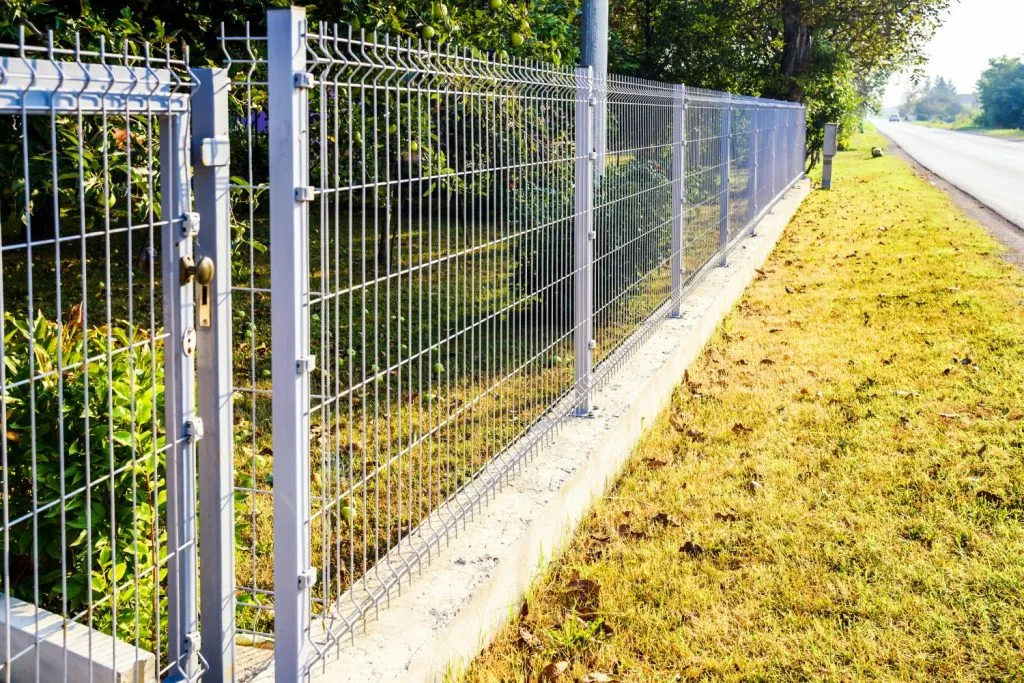

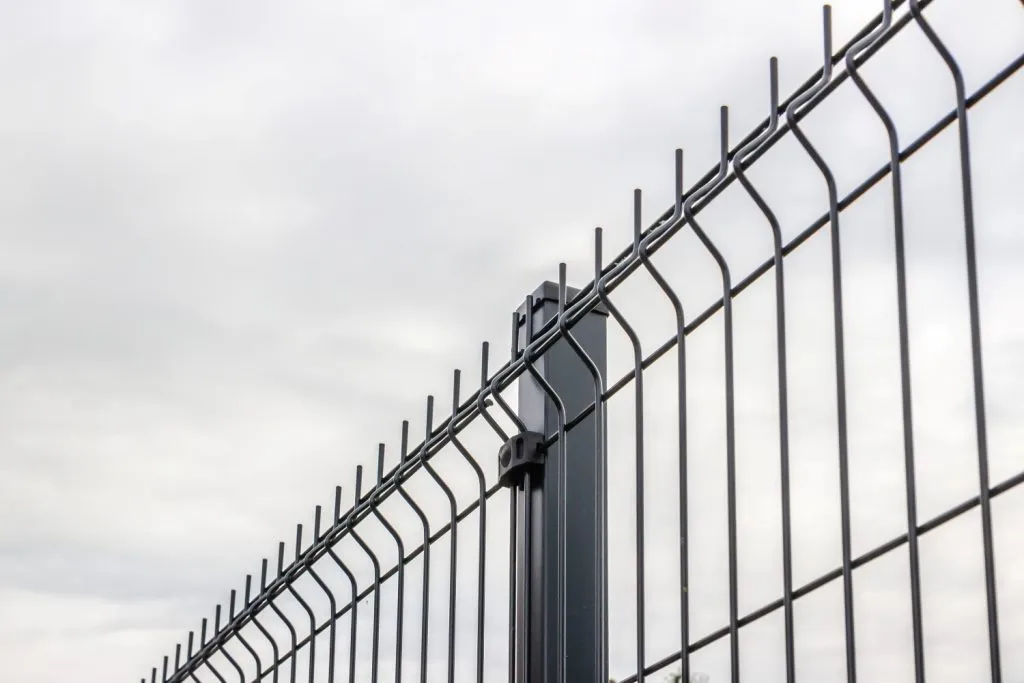

Standard welded panel is produced with “V” shape bending and is the most commonly used fence system thanks to its corrosition resistance and durability.
Specifications
| Mesh Size | Wire Thicknes | Panel Height | Panel Width | Number of Folds | Standards |
| 55x200 mm (standard) 50x100 mm 50x150 mm 50x200 mm available | Ø 4,00mm Ø 4,50mm Ø 5,00mm |
630 mm | 2,50 m (standard) 2,00 m and 3,00 m available | 2 | Panel Norm TSE-EN-10223-7 Wire Norm TSE-EN-10218-2 Galvanization Norm EN10244-2 Class D (50 gr Zn/m2) |
| 830 mm | 2 | ||||
| 950 mm | 2 | ||||
| 1030 mm | 2 | ||||
| 1230 mm | 2 | ||||
| 1430 mm | 2 | ||||
| 1530 mm | 3 | ||||
| 1730 mm | 3 | ||||
| 1930 mm | 3 | ||||
| 2030 mm | 4 | ||||
| 2230 mm | 4 | ||||
| 2430 mm | 4 | ||||
| Colour | Available at any RAL colour (RAL6005 Standard) | ||||
|---|---|---|---|---|---|
| Finish | Galvanized steel wire to ensure high adhesion. On final layer either thermoplastic coating or electrostatic polyester powder coating | ||||
| Tensile Strength | 450-650 N/mm2 | ||||

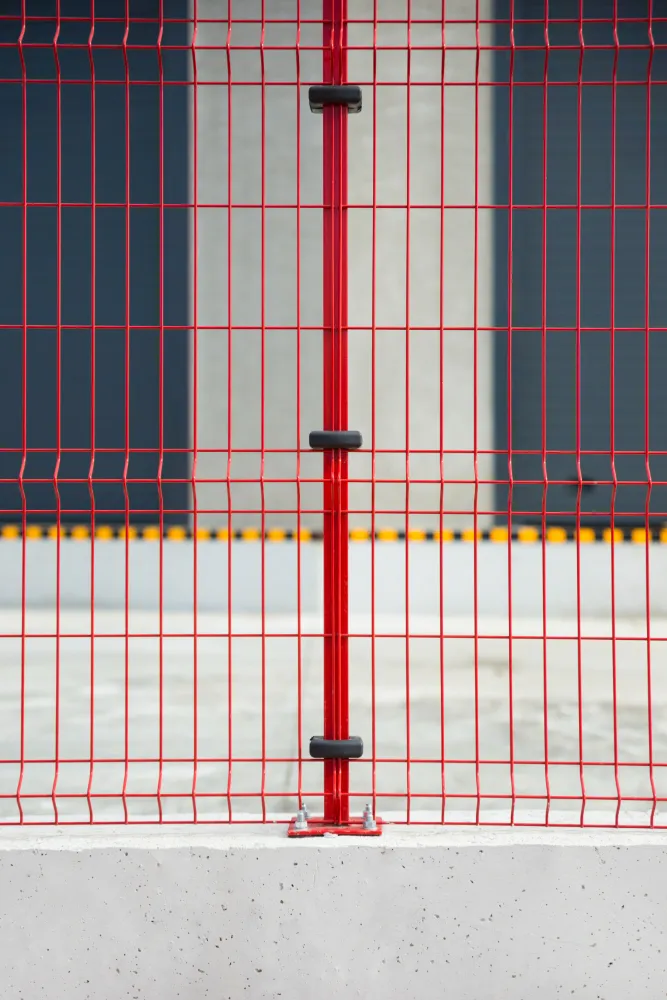

| Profile Posts | Most common sizes are 40x60 mm, 50x50 mm and 60x60 mm | ||||
