Insulation Materials

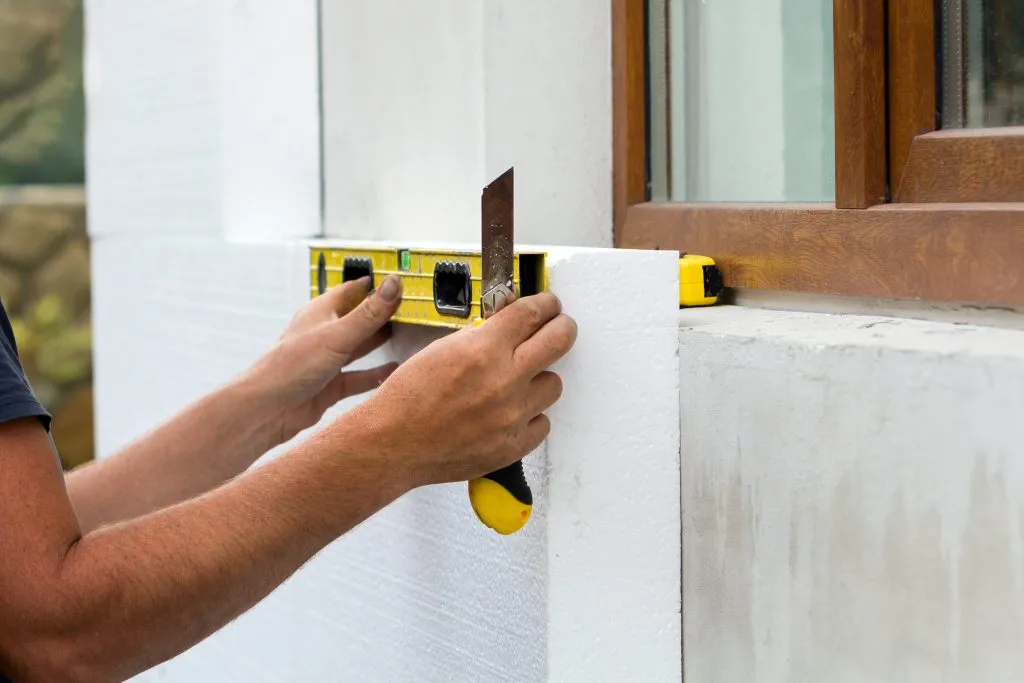

EPS Block
Zetmar provides international sourcing and supply coordination for EPS Block, supporting projects that require documented quality, dependable delivery and project-specific material selection.
Relevant selection details include Density (6-40 kg/m3) and Thickness (200-350 mm). Final grades, dimensions and supply conditions can be matched to the intended application and project requirements.
Request a QuoteOverview
EPS (expanded polystyrene) is manufactured using beads of foam within a mould. Heat or steam is applied directly to the beads, causing them to expand and fuse together.
Thanks to its lightness, full dimentional stability and high flexibility, it provides ease of application and maximum energy saving in cooling and heating.
When it is used in construction, it provides savings on iron, concrete and moulds by not causing cracks because it does not absorb water out of cement thanks to its close porous polystyrene structure with 98% air and 2% plastic.
EPS blocks also contribute to earthquake safety without placing additional load on buildings
Specifications
Product Features
| Density | 6-40 kg/m3 | ||||||
|---|---|---|---|---|---|---|---|
| Thickness | 200-350 mm | ||||||
| Thermal Conductivity | 0,045-0,034 W/mK according to density acc. TS ISO 8302 | ||||||
| Fire Performance | E for EPS, B1 for EPS raw material acc. EN 13501-1 | ||||||
| Maximum Usage Temperature | 75 °C | ||||||
| Color Option | White | ||||||
Packaging Details
| Thickness (mm) | Block Dimensions (mm) | Pieces per bag | Volume of bag (m3) | Footprint of bag (m2) |
| 200 | 400x1000 | 2 | 0.16 | 0.8 |
| 220 | 0.176 | |||
| 230 | 0.184 | |||
| 250 | 0.2 | |||
| 270 | 0.216 | |||
| 280 | 0.224 | |||
| 300 | 0.24 | |||
| 330 | 0.264 | |||
| 350 | 0.28 |
