Steel

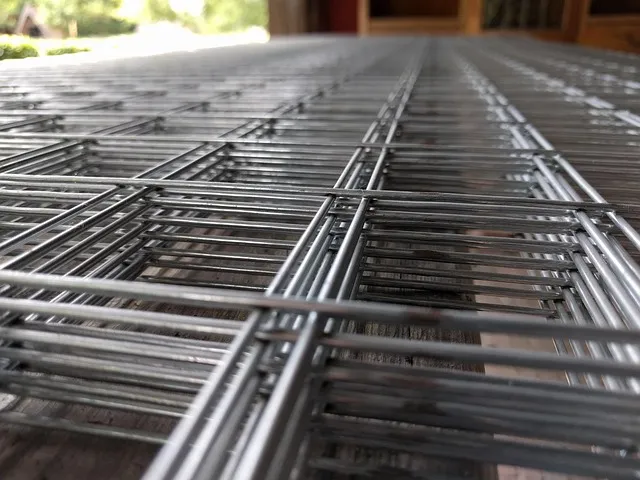

Fence Mesh
Zetmar provides international sourcing and supply coordination for Fence Mesh, supporting projects that require documented quality, dependable delivery and project-specific material selection.
Relevant selection details include Fence (500 / 215 · 75 / 75 · 4.5 / 4.5) and Fence (500 / 215 · 150 / 50 · 4.5 / 4.5). Final grades, dimensions and supply conditions can be matched to the intended application and project requirements.
Request a QuoteOverview

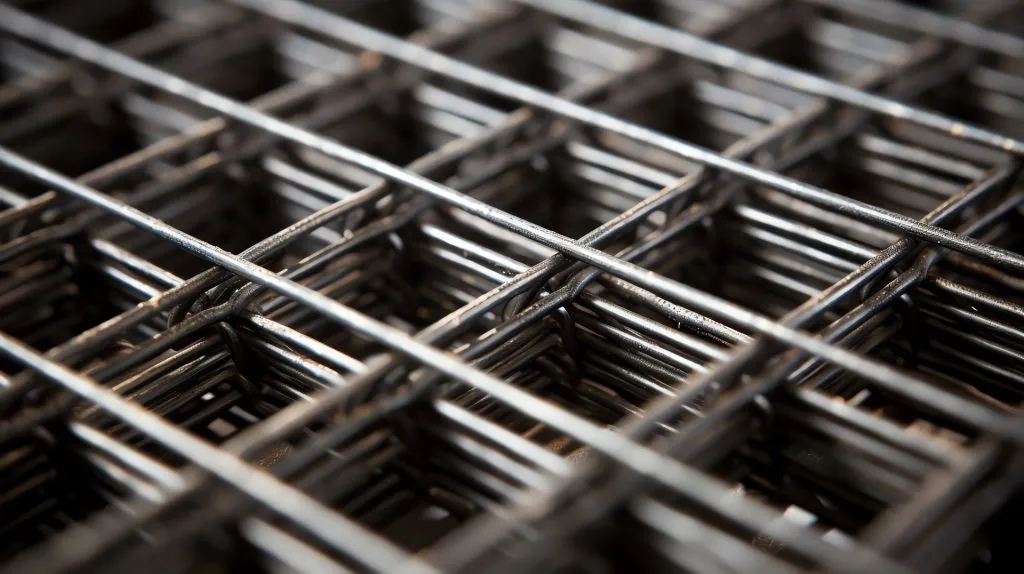

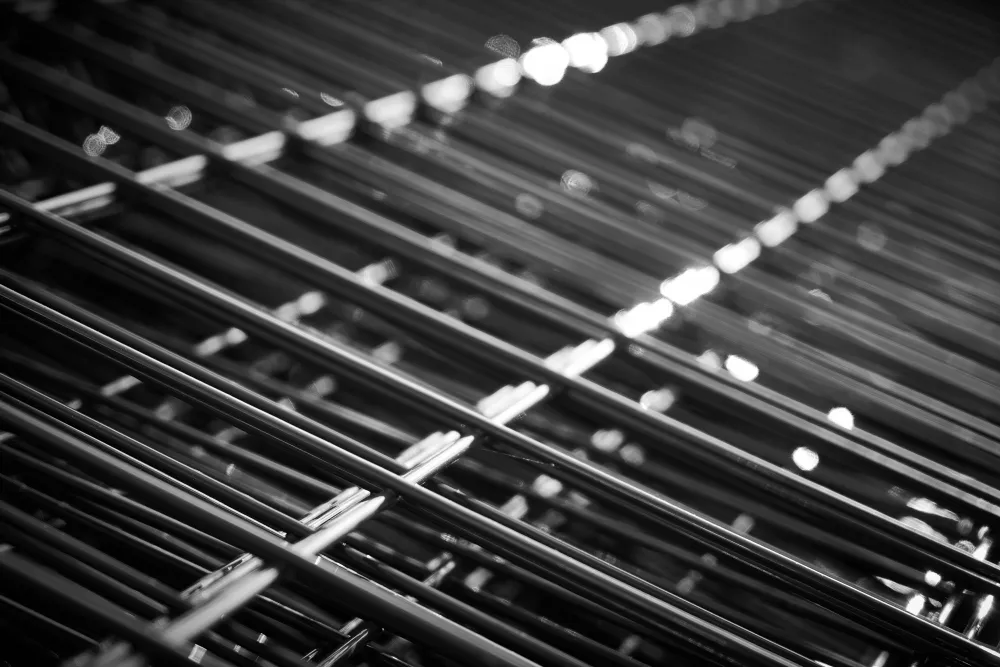

Wire mesh is a building material obtained by welding the vertical ribbed steel bars to horizontal ones and the resistance of which is increased by cold drawing from the wire rod.
Field of Usage
Field Concrete And Road Coatings
In the construction of Tunnels, Mines and Subways
In the construction of bridges, viaducts, higyways
Prefabricated building elements and industrial structures
On retaining walls, floor concretes and substructions
In Dams, Canals and Sewers
In scarecrows, cages , poultry houses and zoos
It is used for decorative purposes
Fences can be made for landscaping purposes
On walkways and sidewalks
Specifications
| Fence Mesh | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| WIRE MESH TYPE | MESH SIZE Length / Width (cm) |
PITCH Length / Width (cm) |
DIAMETER Length / Width (mm) |
LENGTH overhangs (mm) |
WIDTH overhangs (mm) |
Mesh Weight (kg) |
Kg/m2 | Wire Type | Surface Treatment |
| Fence | 500 / 215 | 75 / 75 | 4.5 / 4.5 | 60 / 60 | 25 / 25 | 35.86 | 3.33 | Ribbed or Smooth | Plain, Hot Dip Galvanizing or Painting |
| Fence | 500 / 215 | 150 / 50 | 4.5 / 4.5 | 50 / 50 | 25 / 25 | 35.98 | 2.85 | ||
| Fence | 500 / 150 | 150 / 50 | 4.5 / 4.5 | 50 / 50 | 75 / 75 | 24.81 | 3.31 | ||
| Fence | 500 / 215 | 75 / 75 | 5.0 / 5.0 | 60 / 60 | 25 / 25 | 44.18 | 4.12 | ||
| Fence | 500 / 215 | 150 / 50 | 5.0 / 5.0 | 50 / 50 | 25 / 25 | 44.33 | 4.11 | ||
| Fence | 500 / 150 | 150 / 50 | 5.0 / 5.0 | 50 / 50 | 75 / 75 | 30.57 | 4.11 | ||
| Fence | 500 / 215 | 75 / 75 | 8.0 / 8.0 | 60 / 65 | 25 / 25 | 113.3 | 10.52 | ||

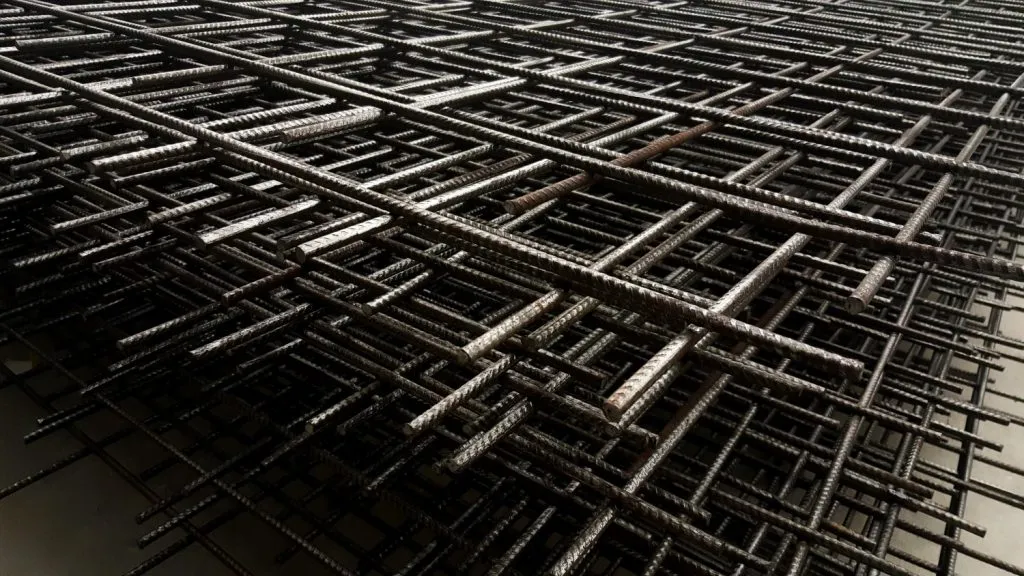

Types of Wire Mesh
Steel mesh is produced in 2 types according to the needs of flooring works
Q Type Wire Mesh
Q type wire mesh has square pitch pattern and is used for bidirectional structural elements.
R Type Wire Mesh
R type wire mesh has rectangular pitch pattern and is used for structural elements running in one direction.
