Roofing and Facade
Trapezoidal Steel Sheet
Zetmar provides international sourcing and supply coordination for Trapezoidal Steel Sheet, supporting projects that require documented quality, dependable delivery and project-specific material selection.
Relevant selection details include Panel Width (100-150-200-250-300 cm) and Panel Dimensions (27x200 mm (5 or 6 ribs), 38x151 mm (6 or 7 ribs), 34x250 mm & 30x250…). Final grades, dimensions and supply conditions can be matched to the intended application and project requirements.
Request a QuoteOverview

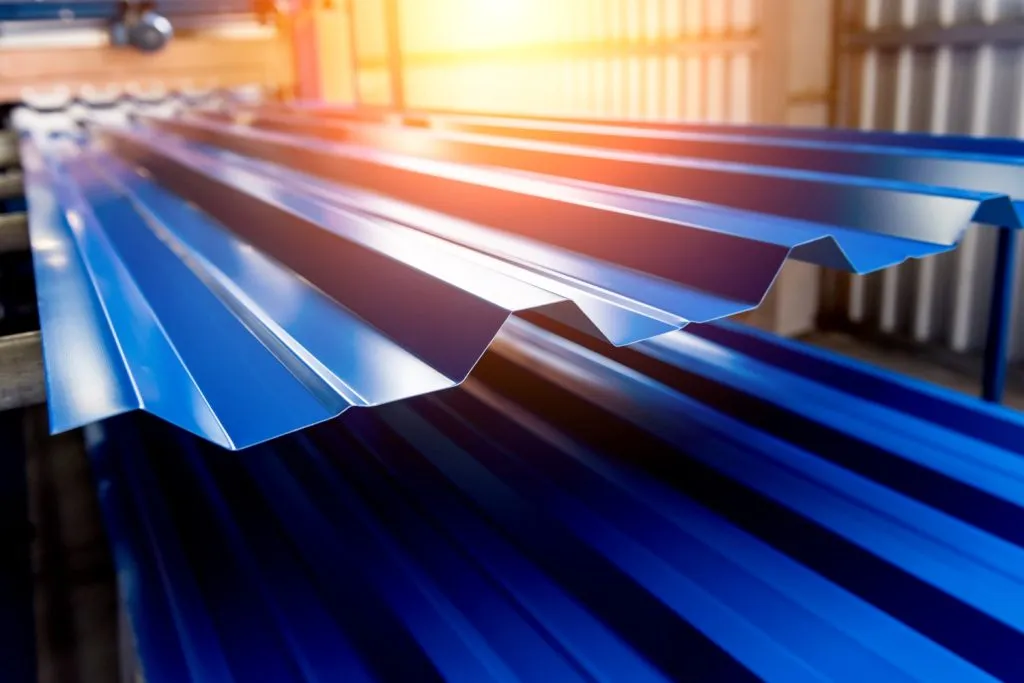

Trapezoidal steel sheet, also known as a corrugated sheet, is traditionally round and wavy. It is low-cost, lightweight, durable, long-lasting product and easy to install. Corrugated metal roofing is a good alternative to concrete and tile roofs.
Thanks to being solid and durable, trapezoidal steel sheets provide different solutions to roofing and cladding.
Specifications
| Trapezoidal Steel Sheet | |
|---|---|
| Trapezoidal Steel Sheet | |
| Panel Width | 100-150-200-250-300 cm |
| Panel Length | 2 - 16 meters |
| Panel Dimensions | 27x200 mm (5 or 6 ribs), 38x151 mm (6 or 7 ribs), 34x250 mm & 30x250 mm (5 ribs) , 30x500 mm (3 ribs) |
| Sheet Thickness | 0,4 - 0,8 mm |
| Rib Option | 3-5-6-7 Ribs, Sinusoidal wawe design |
| Finishing Option | Polyester, PvdF, Plastisol, PVC |
| Coating | Galvanized + Prepainted |
| Colour Options | RAL (9002, 9006, 7042, 7016, 5010, 5015, 6018, 6029, 3009, 3011, 2004, 1028) |
